TPU Silicone Industrial Wire Harness Cable Assembly Overmoulding

Creating a wire harness cable assembly for a medical device that uses TPU (Thermoplastic Polyurethane) or silicone wire with overmolding involves several key considerations to ensure reliability, biocompatibility, and durability. Here’s a detailed guide on how to design and produce such an assembly:

Key Components and Materials

1. Wire and Cable Selection:

   • TPU (Thermoplastic Polyurethane) Wire:

     • Durability: TPU is known for its abrasion resistance, flexibility, and mechanical strength.
     • Chemical Resistance: Resistant to oils, chemicals, and other harsh substances, making it suitable for medical environments.
     • Biocompatibility: Safe for use in medical devices, particularly in applications where the cable may come into contact with skin.

   • Silicone Wire:

     • Flexibility: Extremely flexible, making it ideal for applications requiring frequent bending or movement.
     • Temperature Resistance: Can withstand a wide range of temperatures, often from -60°C to +200°C.
     • Biocompatibility: Silicone is highly biocompatible and is commonly used in medical devices that have direct contact with the human body.

2. Overmolding:

   • Purpose: Overmolding is used to encapsulate the cable assembly, providing strain relief, protection against environmental factors, and enhanced durability.
   • Material Options:
     • TPU Overmolding: Provides a seamless bond with TPU wire, offering flexibility and robustness. It’s ideal for applications requiring high mechanical stress and chemical resistance.
     • Silicone Overmolding: Offers excellent flexibility and a soft-touch finish, making it suitable for applications involving patient comfort or where the assembly needs to be soft and pliable.

3. Connectors:

   • Medical-Grade Connectors: Select connectors that are specifically designed for medical devices, with appropriate certifications for safety and reliability.
   • Overmolded Connectors: Integrate connectors with overmolding to ensure a seamless, waterproof connection that can withstand repeated use and sterilization.

Design Considerations

1. Biocompatibility:

   • Ensure that all materials used (wires, overmolding compounds, and connectors) are biocompatible and compliant with medical standards such as ISO 10993.

2. Sterilization Compatibility:

   • Materials: Both TPU and silicone are compatible with various sterilization methods, including autoclaving, gamma radiation, and ETO (ethylene oxide).
   • Design: The assembly should be designed to withstand repeated sterilization without degrading or losing functionality.

3. Strain Relief:

   • Overmolding: The overmold should provide effective strain relief to prevent wire fatigue or breakage at the connection points, especially where the wire enters the connector.
   • Flexible Sections: Design the cable to have flexible sections where needed, with reinforced areas to handle mechanical stress.

4. Environmental Sealing:

   • Waterproofing: Ensure the overmolding provides an IP67 or higher rating, protecting the assembly from water, fluids, and particulate ingress.
   • Chemical Resistance: The assembly should resist cleaning agents, disinfectants, and other chemicals commonly used in medical environments.

5. Electrical Performance:

   • Shielding: If the cable assembly is for sensitive electronic equipment, consider using shielding to prevent electromagnetic interference (EMI).
   • Signal Integrity: Ensure that the wire gauge and insulation are adequate for maintaining signal integrity and power delivery as required by the medical device.

Manufacturing Process

1. Prototyping:

   • Develop prototypes to test the assembly’s performance, flexibility, and durability. Prototyping allows for early detection of design flaws and ensures that the final product meets all requirements.

2. Overmolding:

   • Tooling: Design and create molds that precisely fit the cable assembly and connectors.
   • Injection Molding Process: Use controlled temperature and pressure to overmold the TPU or silicone onto the assembly, ensuring a secure and durable bond.

3. Testing:

   • Mechanical Testing: Test the assembly for tensile strength, flexibility, and durability under simulated usage conditions.
   • Electrical Testing: Ensure that the assembly maintains proper electrical continuity and insulation resistance.

4. Quality Control:

   • Implement stringent quality control measures to ensure that every assembly meets the required medical standards and performance specifications.

Applications

• Patient Monitoring Systems: Where flexible, biocompatible cables are required for patient connectivity.
• Surgical Instruments: In tools that require durable, sterilizable connections.
• Imaging Devices: For devices needing high-quality signal transmission with minimal interference.
• Wearable Medical Devices: In applications where comfort, flexibility, and biocompatibility are paramount.

Conclusion

A wire harness cable assembly for medical devices using TPU or silicone wire with overmolding offers a robust, flexible, and biocompatible solution that can withstand the demanding requirements of medical environments. By carefully selecting materials, designing for durability, and ensuring compatibility with medical standards, you can create a reliable and effective product for various medical applications.

TPU Silicone industrial wire harness

Overmoulding industrial wire harness

TPU Silicone cabling harnesses

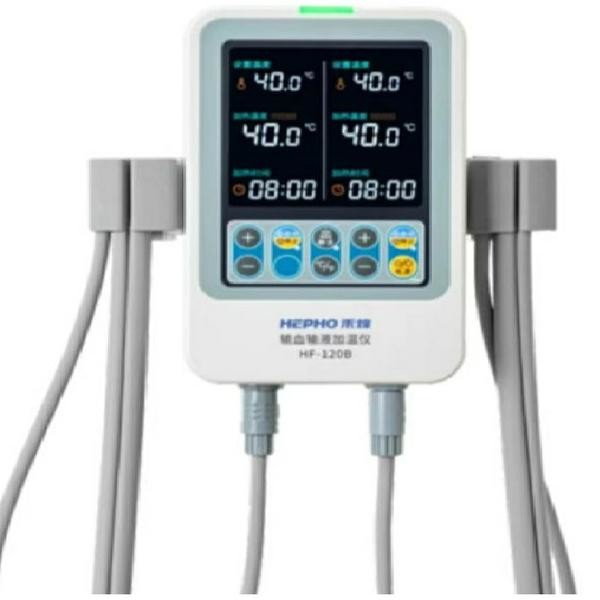

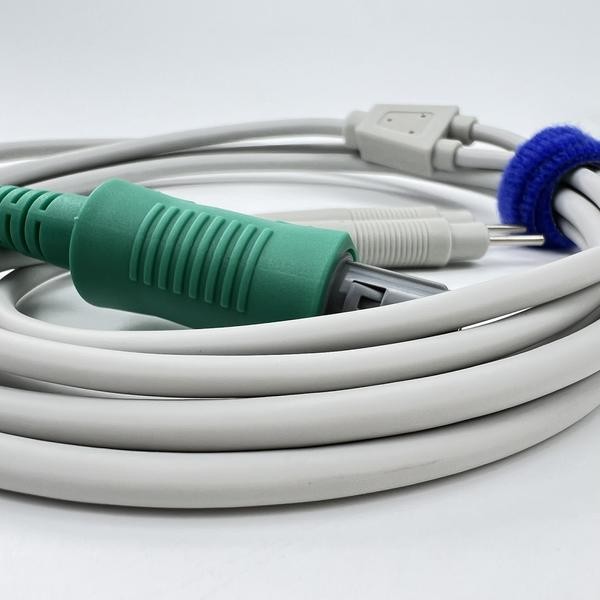

TPU Silicone Industrial Wire Harness Cable Assembly Overmoulding Images
