Fischer ODU LEMO Push Pull Circular Connector Metal EMC Shielding Coaxial 9 Pin

Circular metal EMC shielding push-pull lock coaxial connectors that are compatible with brands like LEMO, Fischer, and ODU are designed for high-performance, high-frequency applications where secure and reliable connections are crucial. These connectors are used in a variety of demanding environments, including industrial, aerospace, and telecommunications.

Key Features

1. Push-Pull Locking Mechanism:

   • Ease of Use: Allows for quick and secure connection and disconnection without tools.
   • Secure Fit: Ensures a stable connection that minimizes the risk of accidental disconnection.

2. Metal Construction:

   • Durability: Made from robust metals like aluminum or stainless steel for mechanical strength and resistance to environmental stresses.
   • Shielding: Provides excellent Electromagnetic Compatibility (EMC) shielding to protect signals from electromagnetic interference (EMI) and radio frequency interference (RFI).

3. Coaxial Contacts:

   • High-Frequency Performance: Suitable for high-frequency applications with minimal signal loss and reflection.
   • Reliable Signal Integrity: Ensures clear and stable signal transmission in RF and data communications.

4. Circular Design:

   • Compact and Robust: The circular form factor is compact, providing a robust and space-efficient connection.
   • Standardization: Compatible with standard sizes and configurations used by LEMO, Fischer, and ODU.

5. EMC Shielding:

   • Protection: Prevents external electromagnetic interference from affecting the signal and ensures the connector’s performance in sensitive applications.

6. Compatibility:

   • Interchangeability: Designed to be compatible with connectors from LEMO, Fischer, and ODU, allowing for easy integration into existing systems and equipment.

Applications

• Telecommunications: For connecting RF equipment, antennas, and communication systems.
• Aerospace: Used in avionics and satellite communications where high-frequency signals are critical.
• Industrial Automation: Connecting sensors, actuators, and control systems in harsh environments.
• Medical Equipment: Ensures reliable connections for diagnostic and imaging devices.
• Military: Provides secure and durable connections in tactical and field communication systems.

Connector Types and Compatibility

• LEMO: Known for precision and high-quality push-pull connectors. Models like the LEMO B Series or the LEMO M Series might be relevant.
• Fischer: Offers a range of robust push-pull connectors suitable for harsh environments, such as the Fischer MiniMax series or Fischer UltiMate series.
• ODU: Provides versatile and durable push-pull connectors, like the ODU AMC series or ODU MINI-SNAP series.

Selection Considerations

• Frequency Range: Ensure the connector can handle the frequency range required by your application.
• Environmental Protection: Consider the environmental conditions, such as moisture and temperature extremes, to select a connector with adequate sealing and protection.
• Mechanical Requirements: Ensure the connector meets mechanical strength requirements and is suitable for the intended use, whether it's for frequent connections or permanent installations.

By choosing a connector that aligns with these features and requirements, you can ensure a reliable and high-performance connection for your specific application.

EMC Shielding lemo push pull

Coaxial lemo push pull

Coaxial 9 pin lemo connector

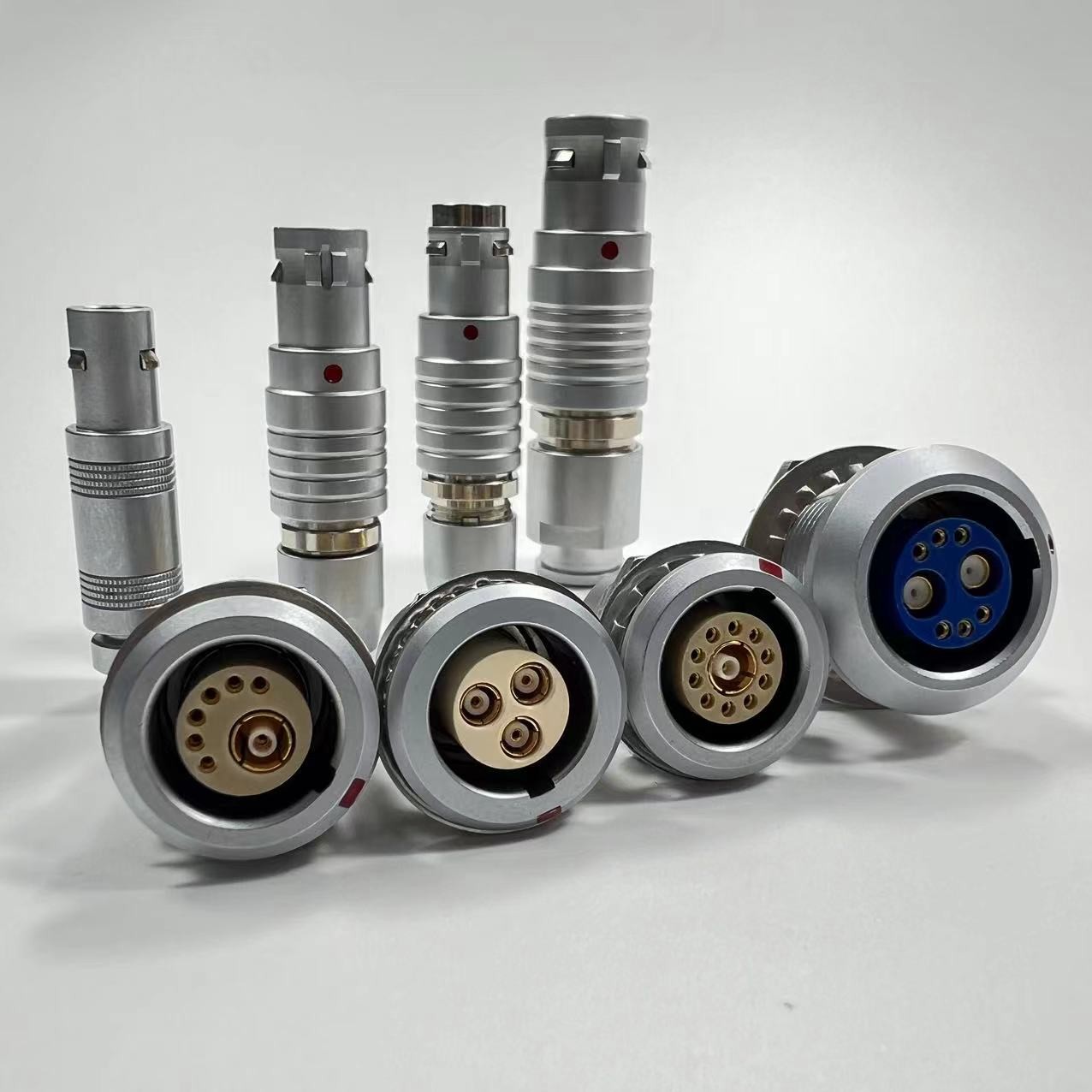

Fischer ODU LEMO Push Pull Circular Connector Metal EMC Shielding Coaxial 9 Pin Images
